CMR SARAVANA POIGAI

Sub Structure :
      3’6” Feet From Road Level.

SUPER STRUCTURE  :
       R.C.C Column with brick work.
       Height -9’6” height from floor finish level to bottom of the roof slab.

Brick Work :
       9” thick outer wall using C.M -1:6
       4½” thick partition wall using C.M -1:5 (Using 6mm dia rod in each four layers)

Plastering :
       Ceiling Plastering with Fiber using C.M –1:3 (Including Hacking of R.C.C surface.)
       Internal Wall plaster with Fiber using C.M –1:4 (Including Scaffolding, curing, etc.)
       Outer wall plastering with Fiber using C.M –1:6 with finished with wood float.(Include Scaffolding, curing, etc)

Wall Tile Works:

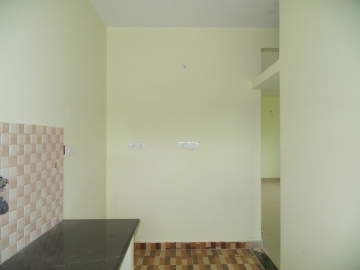

   Kitchen:
       -2’00” from Counter Top-Ceramic Tile
   Toilet:
       -7’00 from FFL
   Bath Room:
       -7’00”from FFL

Flooring  Works :

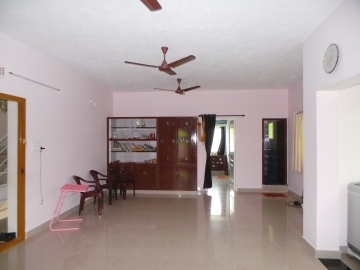

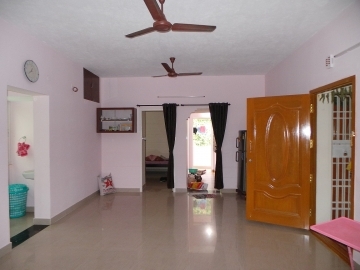

       Entire Hall:
       -2’00”X 2’00”Vitrified with Skirting’s (0’4”) - Tile range 40 per sqf.

       Bed Room:

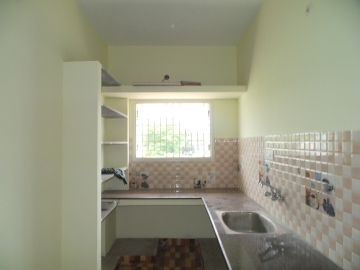

       -2’00”X 2’00”Vitrified with Skirting’s (0’4”) - Tile range 40 per SQF..

       Kitchen:
       -12’00” X 12’00” Ceramic tile with Skirting’s (0’4”) – Tile Range  26 per SQF.

       Toilet:
       - 0’11” X 0’11” Ceramic Tiles - Tile Range 26 per SQF.

      Kitchen Platform:
       Kitchen counter is provided with black granite.(Rs.110/sft -range)

Painting:
       -Internal walls have using premium emulsion. Applying two coats of M/s ALTECH putty with primer one coat and two coats of
        emulsion with roller finish. And colors are approved by owner. (Excluded Dark color).
       -Doors are provided with enamel paint.
       -Main door is provided with Varnish.
       -Ceiling & Outer wall area are applying two coats of ACE with primer,curing, etc.
       -Do as above in Asian in any approved make.

Carpentry and Joinery :
       -Main door: Main Frames and Shutters are using Fully African teak wood (size 4”x3”x7’, 4”x2.5”x3.5” bottom) and door width 4’6.
        Melamine is provided on both side of door. One Godrej night latch(Rs.1200 range), Three numbers of heavy Brace coated tower bolt
        are provided at the back side.

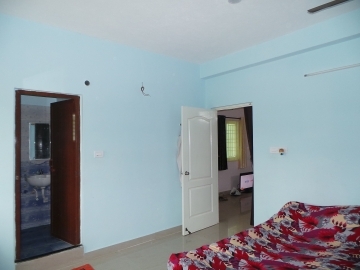

       -Bedroom Door: Main Frames are country teak/Gongu wood with 4”x2½”x7’ thick. The width of bedroom doors is 3’0”. All Bed-door
         shutters are 30mm,  Pannel door with three coats of enamel paint . All bedroom door Godrej locks (CLSSIC CYLINDRICAL LOCK
         Stainless Steel) are provided, two heavy Powder coating 6”,8”-tower bolts are provided at the back side.
       -Window : UPVC Window and price rate consider  Rs 450.00 per SQF
       -Ventilator: UPVC Window and price rate consider   Rs 650.00 per SQF
       -Bath Room Doors: Front and back UPVC tower Bolts are provided With UPVC door.

Grill Work:
         Window M.S Grills are provided with 10 mm Sq.Rods (1.5 kg/sft)

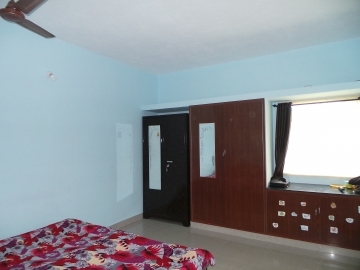

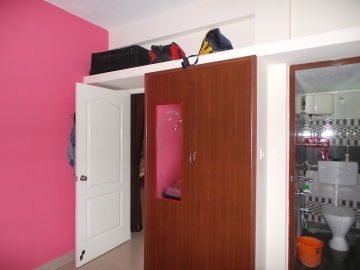

Wardrobe:
         4” x 7” Wardrobe with cuddapha slab to a depth of 1’ 9” in bed rooms and kitchen 1’6”.

Loft :
         RCC loft 1’9” width in bed Rooms & Kitchen.

Parapet Wall:
         4 ½” Thick Brick Wall, 3’3” feet height from roof slab and every ten feet 9” Brick pillar.

Staircase :
         Cement Plaster for Steps and landings.

M.S Hand Rails:
          Hand Rails for 2” Dia MS Pipe
          Horizontals Bracings 1” Dia MS Pipe
          Vertical Pole for 1 ½” Dia MS Pipe

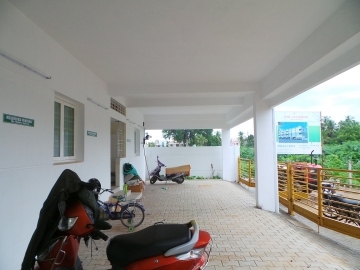

Parking Floor :
        60 mm Tk Parking Tile (Gray Color) provided for car parking area.

Electrical Works :
           Conducts -19 mm & 25 mm ISI for wirings  (PVC Pipes-2mm in slabs, 1.5mm in walls )
           Cables-Domestic – M/s ORBIT
           Switch box-Metal box – M/s ANGER , ROMA.
           Switches-WONDER- White
           Distribution Boards,Circuit boards-M/s MES , DEEP
           Sub DB- Lighting circuit breaker, A/C , Heater, Lighting circuit 3Phase Rotar Switch.
           Main EB Board- M/s DEEP or MES or ABB.
           General Wiring/Change Over-As per design.
           Hall : 03 fan points, four light points, one TV point, one Telephone point, three Plug points are provided.
           Dinning: One fan point, Two light point, and one 15Amp point for fridge are provided.
           Bed: One Fan point, Two light points, two plug point is provided.(Also provided one A.C point, ).
           M.Bed: One Fan point, Two light points, two plug point is provided.(Also provided one A.C point),
           Kitchen:One Fan point, Two light point, one 5Amp & One 15Amp provided for Mixi and Grinder.
           Services: One Light point.
           Open Floor : One light Point.
           Balcony: One Light point.

Plumbing :
            Hall Toilet :
             All Water lines (Concealed )- ¾”, Dia. -CPVC pipes 6 Kgs With ISI make M/s ASHIVAD
             All Water lines (Exposed )- 1.25”, Dia. -PVC pipes 15 Kgs With ISI make M/s STAIR
             All Waste lines ( Concealed & Exposed ),  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
             All Sewage lines,  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
             01 Nos E.W.C Floor Mounted with Flush Tank-( Rs 2000.00)
             01 Nos Wash Basin with tap ( Rs 800.00)
             01 Nos Health Faucet (Rs 550.00)
             01 Nos Wall Mixture two in one ( Rs 2000.00)
             01 Nos Shower ( Rs 350.00)
             01 Nos Extra Tap ( Rs 450.00)
             01 Nos Water Heater Line ( Hot & Cold ).
             M Bed Room Toilet:
            All Water lines (Concealed )- ¾”, Dia. -CPVC pipes 6 Kgs With ISI make M/s ASHIVAD
            All Water lines (Exposed )- 1.25”, Dia. -PVC pipes 15 Kgs With ISI make M/s STAIR
            All Waste lines ( Concealed & Exposed ),  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
            All Sewage lines,  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
            01 Nos E.W.C Floor Mounted with Flush Tank -( Rs 2000.00)
            01 Nos Wash Basin with tap ( Rs 800.00)
            01 Nos Health Faucet (Rs 550.00)
            01 Nos Wall Mixture two in one ( Rs 2000.00)
            01 Nos Shower ( Rs 350.00)
            01 Nos Extra Tap ( Rs 450.00)
            01 Nos Water Heater Line ( Hot & Cold ).
           Bed Room Toilet :
           All Water lines (Concealed )- ¾”, Dia. -CPVC pipes 6 Kgs With ISI make M/s ASHIVAD
           All Water lines (Exposed )- 1.25”, Dia. -PVC pipes 15 Kgs With ISI make M/s STAIR
           All Waste lines ( Concealed & Exposed ),  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           All Sewage lines,  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           01 Nos E.W.C Floor Mounted with Flush Tank -( Rs 2000.00)
           01 Nos Wash Basin with tap ( Rs 800.00)
           01 Nos Health Faucet (Rs 550.00)
           01 Nos Wall Mixture two in one ( Rs 2000.00)
           01 Nos Shower ( Rs 350.00)
           01 Nos Extra Tap ( Rs 450.00)
           01 Nos Water Heater Line ( Hot & Cold ).
           Dinning:
           All Water lines (Concealed )- ¾”, Dia. -CPVC pipes 6 Kgs With ISI make M/s ASHIVAD
           All Water lines (Exposed )- 1.25”, Dia. -PVC pipes 15 Kgs With ISI make M/s STAIR
           All Waste lines ( Concealed & Exposed ),  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           All Sewage lines,  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           01 Nos Wash Basin With tap ( Rs 800.00)
           Kitchen :
           All Water lines (Concealed )- ¾”, Dia. -CPVC pipes 6 Kgs With ISI make M/s ASHIVAD
           All Water lines (Exposed )- 1.25”, Dia. -PVC pipes 15 Kgs With ISI make M/s STAIR
           All Waste lines ( Concealed & Exposed ),  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           All Sewage lines,  PVC 6Kgs- 2.5” & 4” Dia. 6 Kgs With ISI make M/s STAIR
           01 Nos SS Sink ( Rs 2000.00)
           02 Nos Water Line for Bore Well and Sump Water.
          Rain Water:
          All Rain Water lines (Exposed )- 4”, Dia. -PVC pipes 4 Kgs With ISI make M/s STAIR
Misc:
          All external open pipes are PVC wherever chambers are necessary Medium Duty C.I man-holes are provided and the line is taken up
          to the main gate
